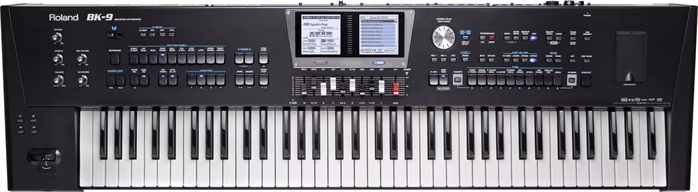

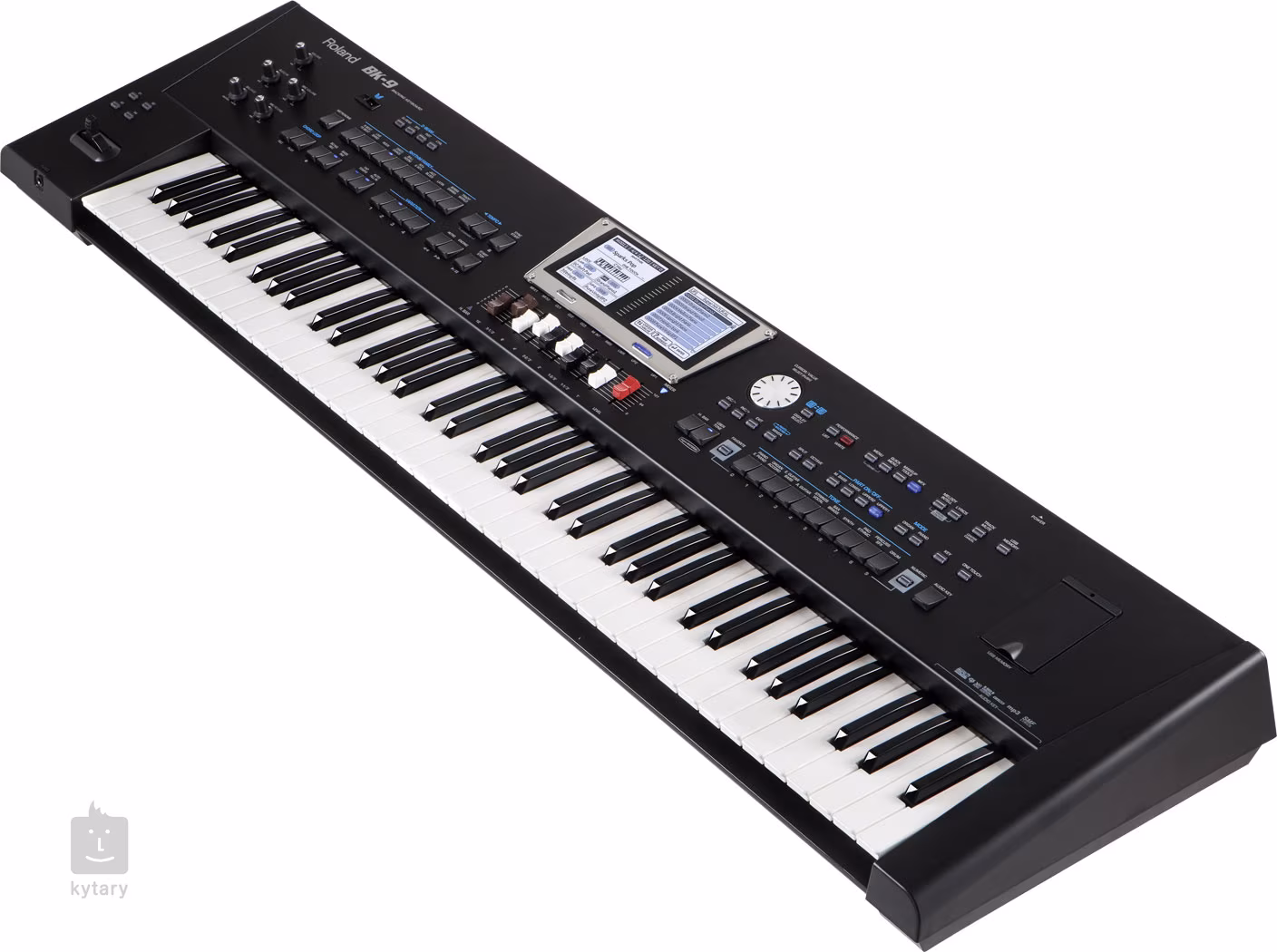

Roland BK-9

Specifikace

Keyboard

61 keys (velocity sensitive)

Display

160 x 160 dots Graphic LCD (with backlit)

Sound Generator

Max. Polyphony

128 voices (GM2/GS/XG Lite compatible)

Sounds

1,172 tones, 60 Drum Sets

Multitimbral parts

3 real-time parts (UP1, UP2, LWR) + 16 song parts

Master Tuning

415.3 to 466.2 Hz

Key Control (Transpose)

-6 to +5 in semitones (for audio/MIDI data)

Tempo change

20 to 250 BPM for SMF and rhythms, 75 to 125% for mp3 and WAV files

Part mute functions

TRACK MUTE (Rhythms, SMF), CENTER CANCEL (mp3, WAV, AUDIO INPUT signals)

Effects

Real-time parts (UP1, UP2, LWR), Rhythms/SMF section

Reverb: 8 types (selectable via Makeup Tools)

Chorus: 8 types (selectable via Makeup Tools)

MFX: 84 types for real-time parts (selectable via Tone Part MFX)

MFX: A & B for rhythm and SMF section (selectable via Makeup Tools)

Parametric EQ: 6 presets + 1 User memory

Multi-band compressor: 6 presets + 1 User memory

Rhythm section

Rhythms

305 in 6 “Rhythm” families (localized rhythms for specific areas are included in the WORLD 1 and WORLD 2 families)

Rhythm Composer

Internal Rhythm Composer, SMF-to-Rhythm Converter provided as PC application (Windows) on the bundled CD-ROM

One Touch memories

4 programmable registrations per rhythm

Rhythm Makeup Tools

Instrument-oriented editing

Songs

Real-time player

SMF (Format 0/1), KAR, mp3, WAV, mp3+CDG

Song chord extractor

Automatic chord detection for SMF files

SMF Makeup Tools

Instrument-oriented editing

Performance Memories

Performance Lists

Unlimited number (storage on USB memory)

Over 500 “Music Assistant” memories (internal memory)

5 “Factory Song” memories (internal memory)

Performance memories per List

Max. 999

Search function

Quick location of SMF, audio and JPG files on the connected USB memory

Demo

Yes

Recording

Media

USB Flash memory

Song Save Format

Audio files: WAV (44.1 kHz, 16-bit linear)

Video

Lyrics

SMF, mp3/WAV, mp3+CDG

Slide shows

Picture folder linked to songs (recommended resolution: 512 x 384 or 1024 x

768 pixels)

Other

Panel controls

Knobs: VOLUME, Rotary encoder: Data dial

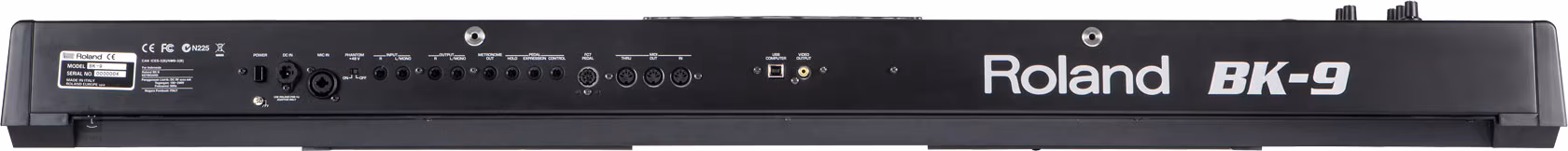

Connectors

PHONES jack x2: Stereo 1/4" phone type

AUDIO INPUT jack: Stereo miniature phone type

AUDIO OUTPUT jacks (L/Mono, R/Mono): 1/4" phone type

USB COMPUTER connector (Type B, reception and transmission of MIDI data)

USB MEMORY (Type A, data storage devices)

MIDI connectors (IN, OUT): Visual Control function

VIDEO OUTPUT jack: RCA-type (CVBS, PAL or NTSC selectable)

Foot pedal jack: HOLD, SWITCH/EXPRESSION (programmable)

Speakers

10 cm x 2

Rated power output

12 W x 2

Power supply

AC adaptor

Power consumption

1100mA

Auto Off function

Off, 10 min, 30 min, 240 min

Accessories

Owner’s Manual, AC adaptor, Power cord (for connecting the AC adaptor), Music rest, CD-ROM (Style Converter 4.0, USB driver)

Option (sold separately)

USB Flash Memory: M-UF series, Pedal Switch: DP series, Footswitch: BOSS FS-5U, Expression Pedal: EV series

Size and Weight (Without music rest)

Width (W)

1,044 mm41-1/8 inches

Depth (D)

317 mm12-1/2 inches

Height (H)

129 mm5-1/8 inches

Weight

7.5 kg16 lbs. 9 oz.

Weight excluding AC adaptor and music rest

Size and Weight (Including music rest)

Width (W)

1044 mm41-1/8 inches

Depth (D)

317 mm12-1/2 inches

Height (H)

301 mm11-7/8 inches

Weight

7.5 kg16 lbs. 9 oz.

Weight excluding AC adaptor and music rest
